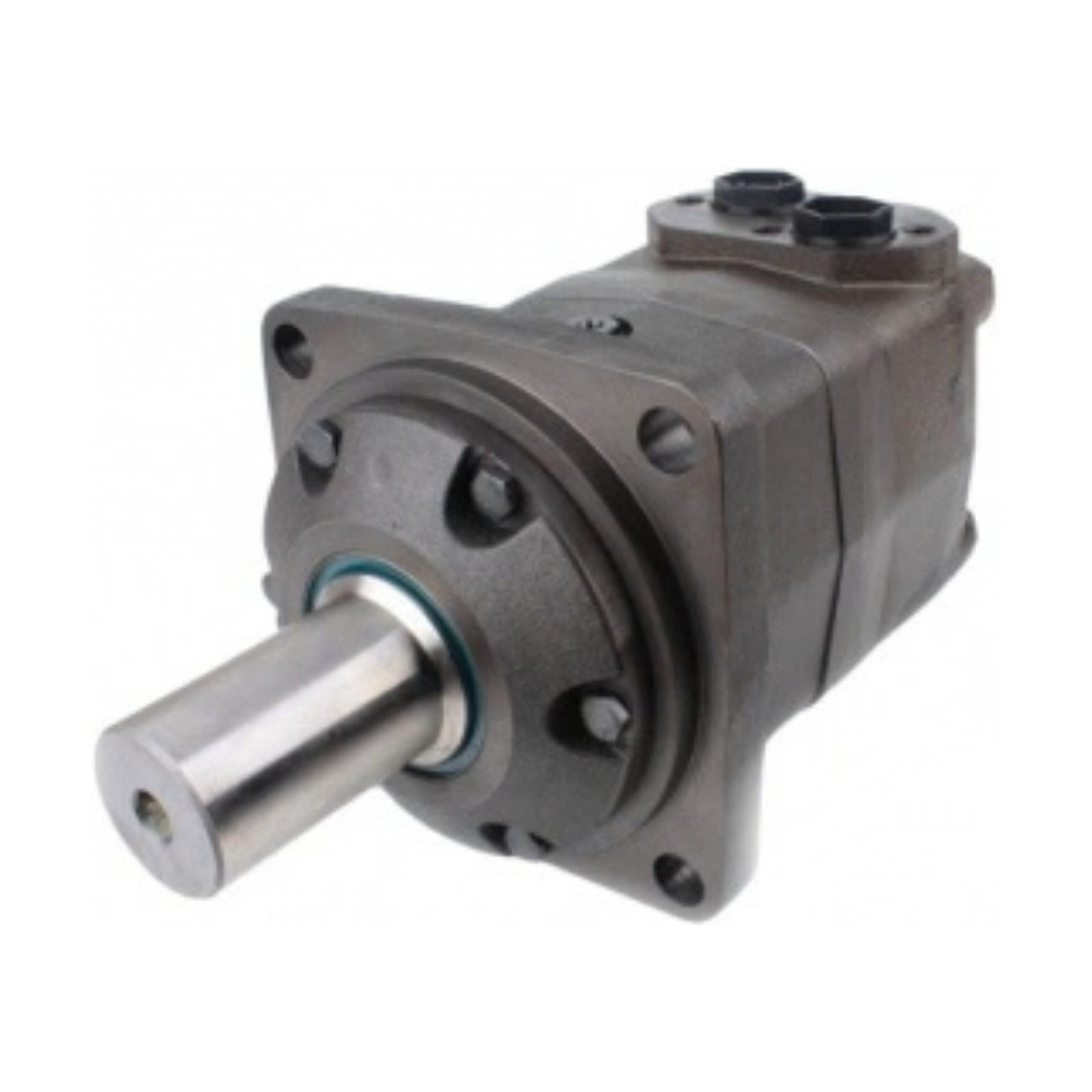

M+S Hydraulic MV 400 orbital motor — equivalent to Danfoss 151B3101 (Danfoss OMV 400).
- Manufacturer: M+S (Made in EU)
- Rotation: Reversible
- Flange: Square, 4-hole
- Shaft: Cylindrical 50mm
- Ports: Side, BSPP
- Displacement: 400 cc/rev
- Speed range: 9–500 RPM
- Torque: 1180 / 1410 / 1640 Nm (continuous/intermittent/peak)
- Pressure: 200 / 240 / 280 bar (continuous/intermittent/peak)
- Weight: 32.6 kg
- Danfoss equivalent: 151B3101
- AM Fluid Power SKU: MS_OMV400CP_151B3101_EQUIV
Full performance curves and dimensional drawings:
Download the M+S Hydraulic OMV catalogue (PDF)
Do contact us if you need tech support on your application.
sales@amfluidpower.com
Disclaimer: All Pictures shown are for illustration purpose only. Read carefully all technical data before making your purchasing decision.
