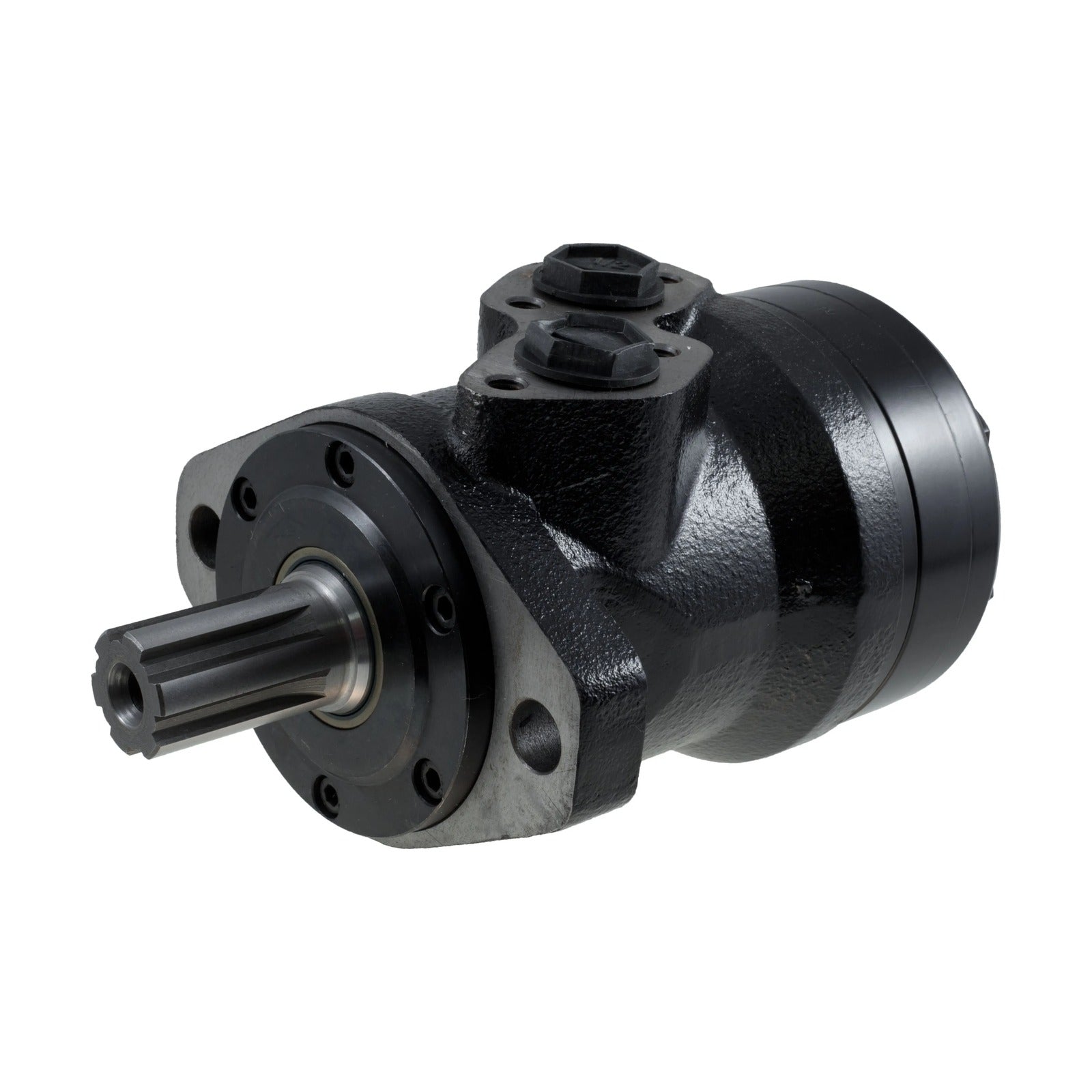

M+S Hydraulic MR 50 orbital motor — equivalent to Danfoss 151-0420 (OMR 50).
- Manufacturer: M+S (Made in EU)
- Country of Origin: Bulgaria
- Rotation: Reversible
- Flange: SAE A 2 holes
- Shaft: Splined 1in (SAE 6B / z6)
- Ports: Side, BSPP
- Seals: Standard shaft seal
- Displacement: 50 cc/rev
- Speed range: 10–775 RPM
- Torque: 100 / 130 / 170 Nm (continuous/intermittent/peak)
- Pressure: 140 / 175 / 225 bar (continuous/intermittent/peak)
- Weight: 6.8 kg
- Danfoss equivalent: 151-0420
Full performance curves and dimensional drawings:
Download the M+S Hydraulic OMR catalogue (PDF)
Do contact us if you need tech support on your application.
