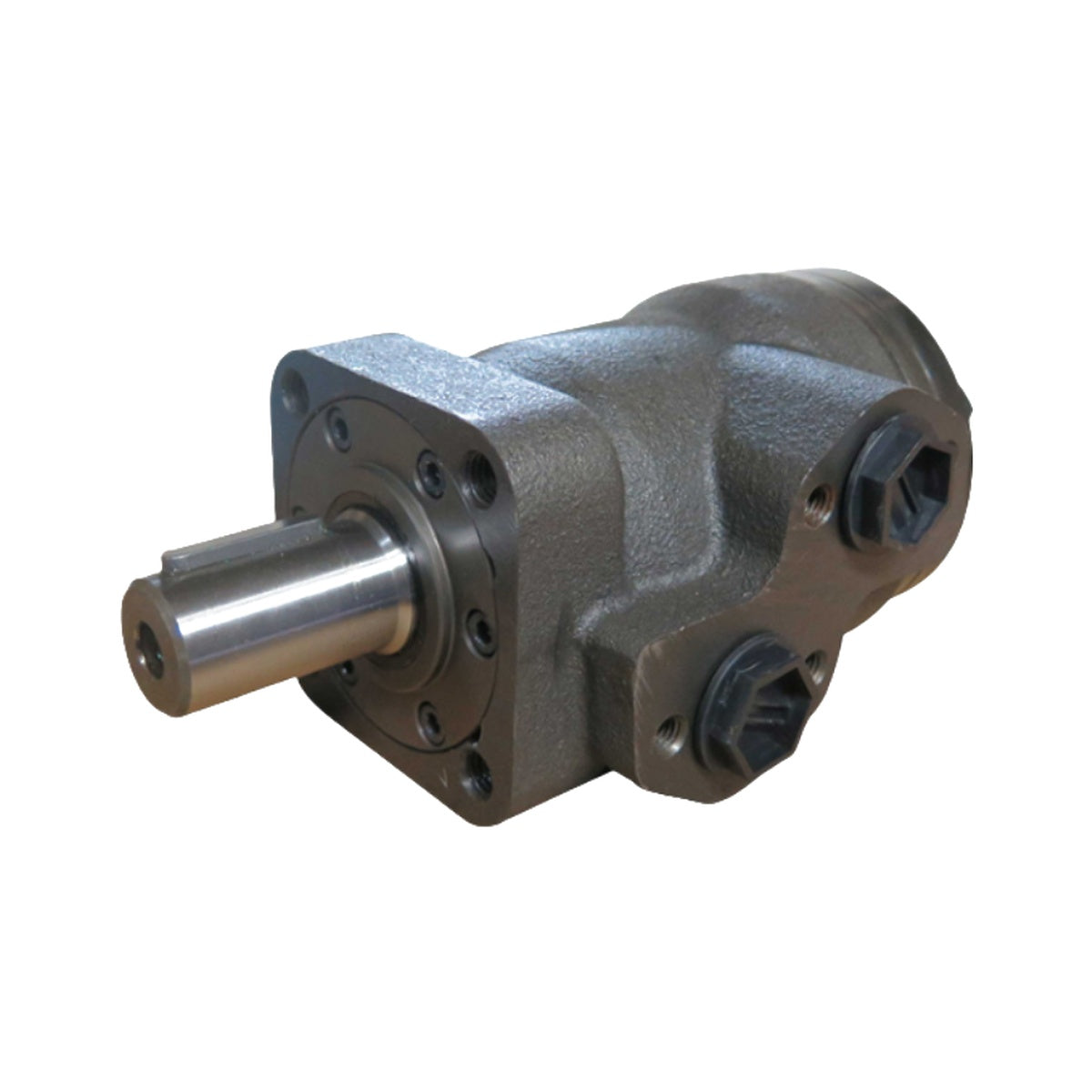

M+S Hydraulic MPQ080CO 80 orbital motor.
- Manufacturer: M+S (Made in EU)
- Country of Origin: Bulgaria
- Rotation: Reversible
- Flange: Square mount, 4 bolts
- Shaft: Cylindrical 25.4mm (1in), square-flange mount
- Ports: Side, BSPP
- Seals: Standard shaft seal
- Displacement: 80 cc/rev
- Speed range: 10–755 RPM
- Torque: 151 / 195 / 224 Nm (continuous/intermittent/peak)
- Pressure: 140 / 175 / 225 bar (continuous/intermittent/peak)
- Weight: 5.9 kg
- AM Fluid Power SKU: 10000227
Full performance curves and dimensional drawings: Download the M+S Hydraulic OMP catalogue (PDF)
Do contact us if you need tech support on your application.
