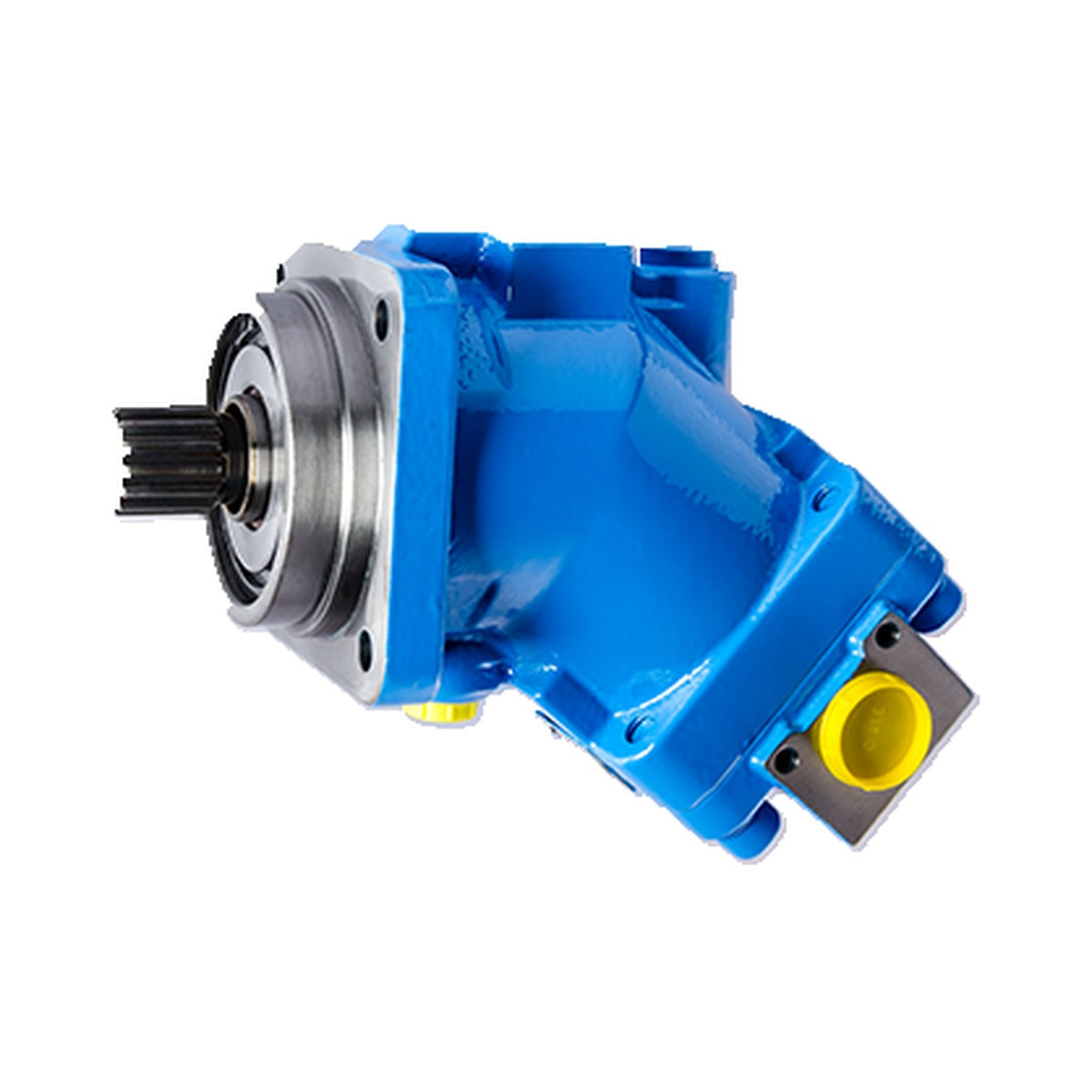

Make: Hydroleduc (France)
Displacement: 80 cc/rev
Rotation: Reversible
Front Flange: ISO 4 bolts - see drawing

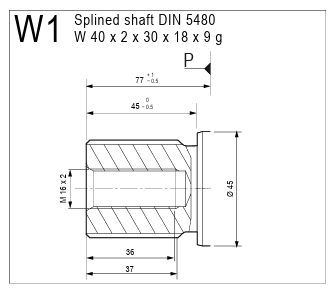

Shaft: Splined DIN5480 W40 X 2 X 30 X 18 X 9g

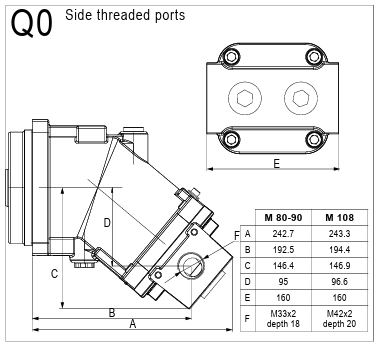

Ports: Threaded - side M33x2 depth 18
Continuous / Peak Pressure: 400 / 450 bar
Continuous Speed: 4,500 RPM
Seals: FKM - Viton
Perfectly interchangeable with Rexroth A2FM, Parker F12.
Full performance curves and dimensional drawings: Download the Hydro Leduc M series catalogue (PDF)
Do contact us if you need tech support on your application.
